WAECO Tracer® UV R134a

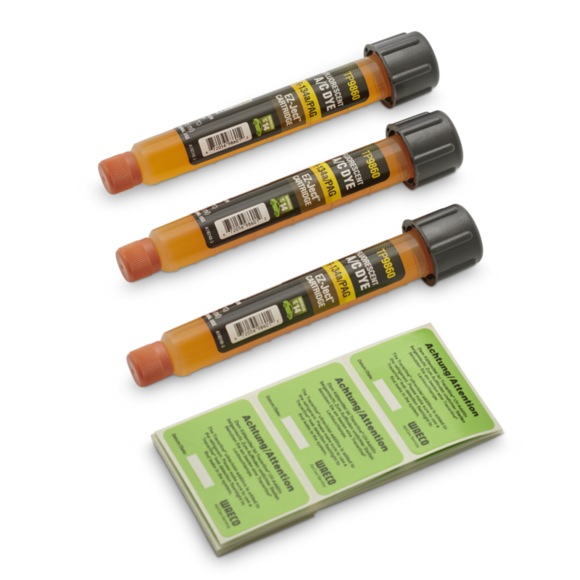

Tracer® UV dye cartridge 14.8 ml, PAG oil-based, for R134a, 3 pieces

UV dyes by Tracer® provide high leakage detection accuracy at a competitive cost. Based on high-quality refrigerant oils only, Tracer® UV dyes don't cause wear on the seals in the vehicle's air conditioner, cooling water system, fuel tank or the connected A/C service unit. Containing no solvents whatsoever, they don't impair the refrigerant oil‘s lubricating ability. Available for different refrigerant oils (PAG, mineral oil, ester) and in different sizes and containers (sticks, cartridges, cans, bottles). Tracer® UV dyes are approved for use with new refrigerants, such as CO₂ and R1234yf. : 8887600006
WAECO Tracer® UV R134a
...And more
    • Easy application with the matching Tracer® hand pump
    • Solvent-free UV additive – no risk of damage to A/C components or your service equipment
    • Excellent Tracer® quality for safe and efficient leakage detection
    • For adding to A/C systems charged with refrigerant
    • Time-saving solution – ideal in preparation for a repair
    • Approved by automotive manufacturers

Safe and effective leak detection

Decreasing refrigerant charging amounts in automotive A/C systems require more sensitive leak detection equipment. This is where WAECO provides a convincing solution with its highly fluorescent additives, lamps and goggles which are perfectly coordinated. UV leak detection additives are well-proven for their fast, easy to use and highly accurate leak detection at a competitive costs. Caution is advised because poor quality leak detection additives can cause wear on the seals in the air conditioner and in the A/C service unit. Moreover, they can contain solvents that impair the refrigerant oil‘s lubricating ability.. For use with refrigerant oils (PAG, mineral oil, ester), there’s currently only one UV additive available that contains no solvents whatsoever, features an excellent fluorescence and is based on high-quality refrigerant oils only. Its name: TRACER®. When properly applied, this additive is absolutely safe for use in all types of automotive air conditioners and A/C service units. Special TRACER® leak detection additives have already been approved for use with new refrigerants, such as CO2 and R1234yf. TRACER® products contain 10 times more dye than other UV additives, which makes them much more effective when it comes to tracing smaller leaks.

Safe and effective leak detection


SKU number 8887600006
Model Cartridge
Scope of delivery Tracer® UV Dye for R134a, 3 cartridges á 14,8 ml, 42 service sticker, manual, (en/fr/es/de), cardboard box
Product Description Tracer® UV dye cartridge 14.8 ml, PAG oil-based, for R134a, 3 pieces
Dimensions product depth 197 mm
Dimensions product height 6 mm
Dimensions product width 88 mm
Net weight 0.22 kg
For Refrigerant R134a
Oil Type PAG
EAN-13 4015704289312
