Détection des fuites par UV

Détection des fuites par UV

  • Complete UV leak detection kit, including: hand pump, 2 cartridges of leak dye, low-side service hose and valve adapter, UV leak detection lamp, UV glasses, GLO-AWAY (225 ml), TRACER® underhood labels (50 pcs.)
  • Offers highly effective leak detection – can trace ultra-fine leaks and also the only method available for identifying vibration leaks
  • Comes in a sturdy case in PAG oil-resistant plastic
  • For leak detection on R134a A/C systems in combination with PAG oil
  • Hand pump and cartridges can be stored mounted ready for use
  • Approved by automotive manufacturers

  • Reliable leak detector that senses refrigerant concentrations in the ambient air
  • Measuring head on flexible neck to reach hard-to-access places and carry out a thorough inspection
  • Sensitivity: up to 5 g / year
  • Only responds to R134a/R1234yf refrigerant – no interference by other gases (plastic emissions) or air movement

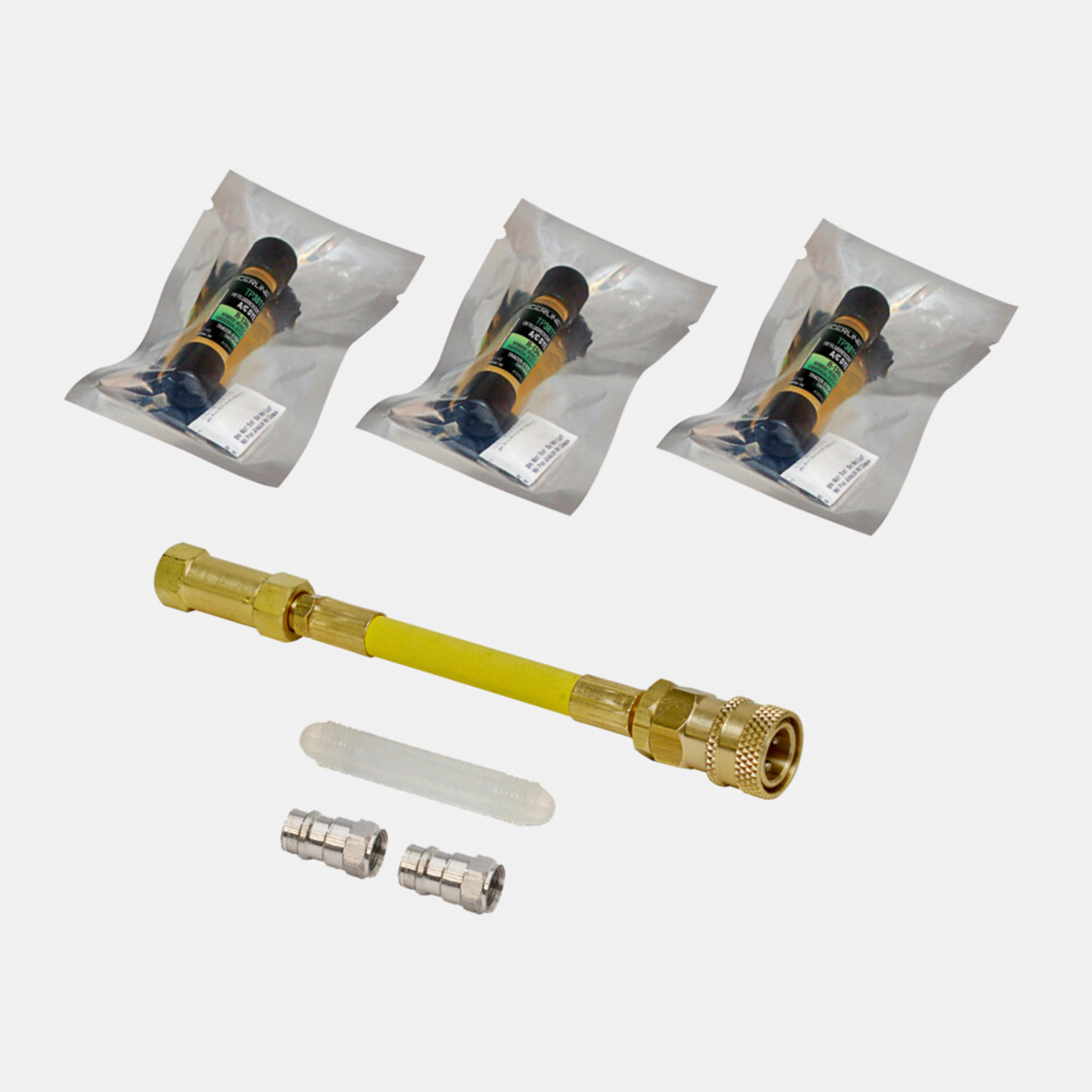

  • Complete UV additive injection kit – includes three UV dye sticks, hose, coupler, valve and charging adapter
  • Safe for use on hybrid vehicles – insulation resistance of the compressor oil won’t drop
  • Light-proof storage of the POE special oils in aluminum laminated bags

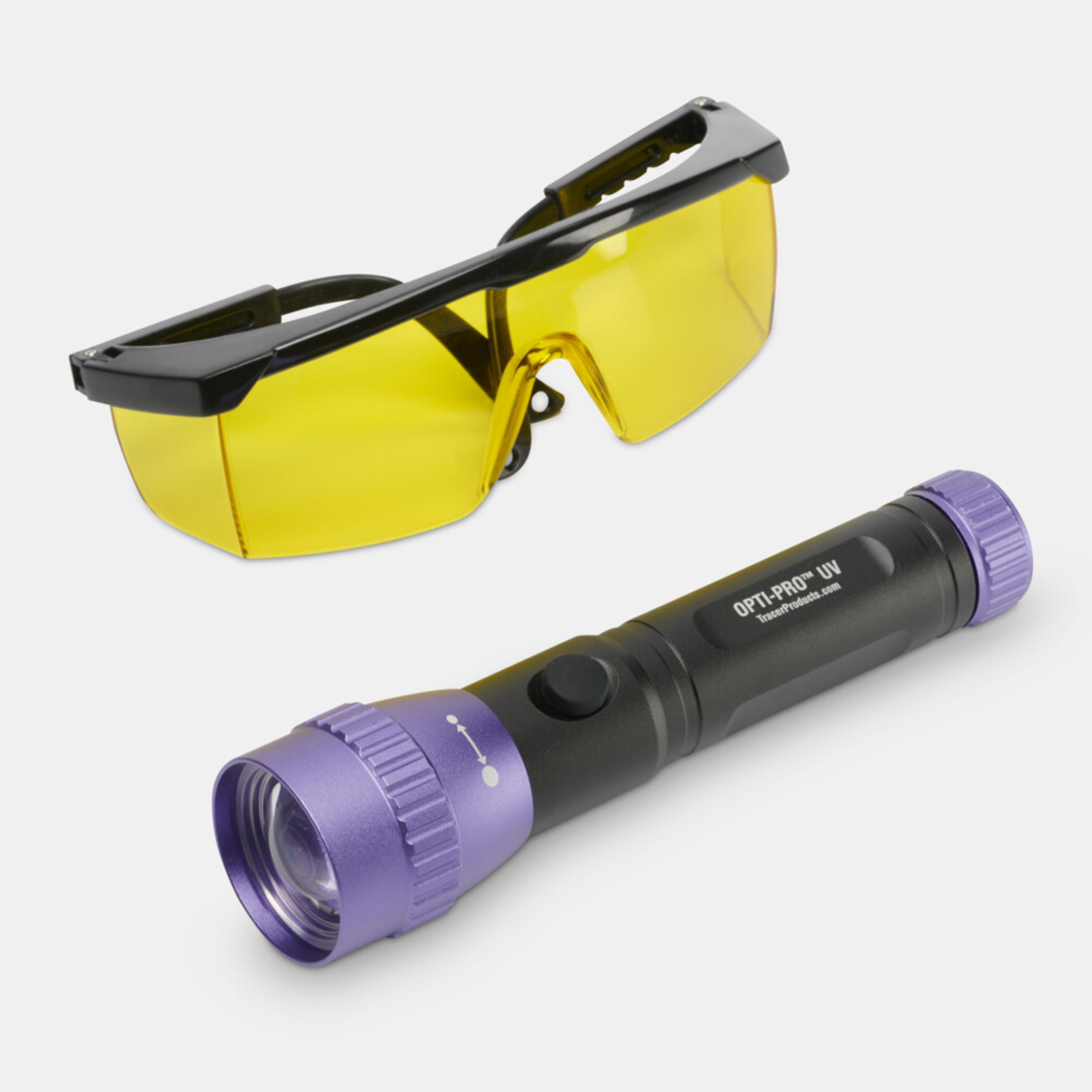

  • Practical and effective tool for UV leak detection
  • Compact, cordless and lightweight design
  • 100,000-hour, high-brightness LEDs
  • Powered by three AA batteries
  • UV glasses also included

  • Complete kit for UV leak detection – includes LED leak detection lamp, 236 ml refill bottle, UV glasses and TRACER® under-hood labels
  • Specially designed for R1234yf A/C service units with integrated UV additive management
  • Powerful UV LED lamp (50 W, 12 V), with a UV intensity of 5000 μW/cm2
  • Contents of one refill bottle sufficient for approx. 24 car applications

  • Pump for adding TRACER® leak detection additives to the suction side of charged R134a air conditioners – an integral part of the UV leak detection process
  • Accurate dosing via spindle adjustment
  • Integrated non-return valve protects against over-pressure
  • Fits cartridge TP-9760-0304 (sufficient for 34 car applications)
  • Supplied with low-pressure service hose, quick coupler for R1234yf A/C systems, one cartridges of additive (14.80 ml), vent adapter, hand spindle and label with instructions

  • Pump for adding TRACER® leak detection additives to the suction side of charged R1234yf air conditioners – an integral part of the UV leak detection process
  • Accurate dosing via spindle adjustment
  • Integrated non-return valve protects against over-pressure
  • Supplied with low-pressure service hose, quick coupler for R1234yf A/C systems, two cartridges of additive (14.80 ml each), vent adapter, hand spindle and label with instructions

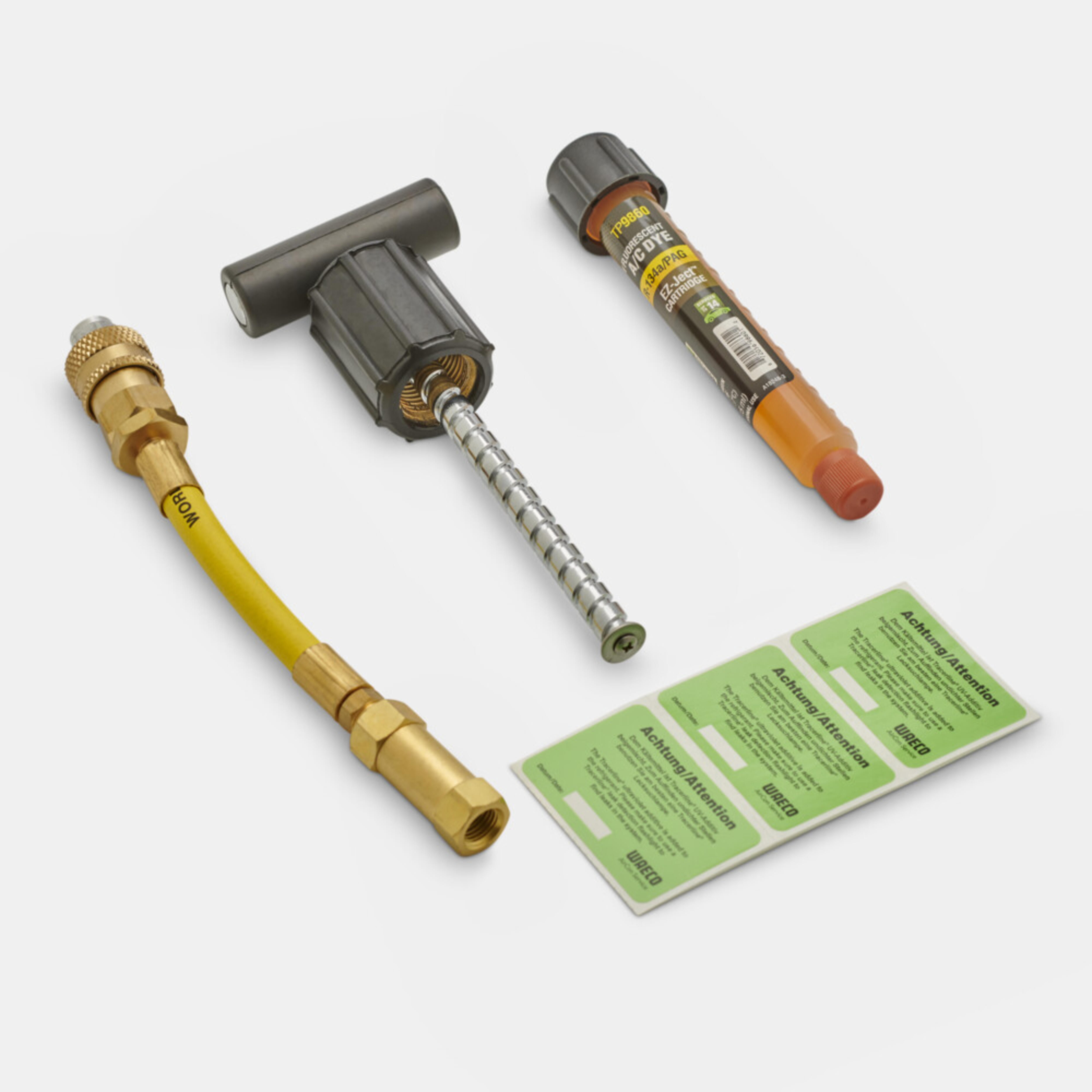

  • Pump for adding TRACER® leak detection additives to the suction side of charged R134a air conditioners – an integral part of the UV leak detection process
  • Accurate dosing via spindle adjustment
  • Integrated non-return valve protects against over-pressure
  • Supplied with low-pressure service hose, quick coupler for R134a A/C systems, two cartridges of additive (14.80 ml each), vent adapter, hand spindle and label with instructions

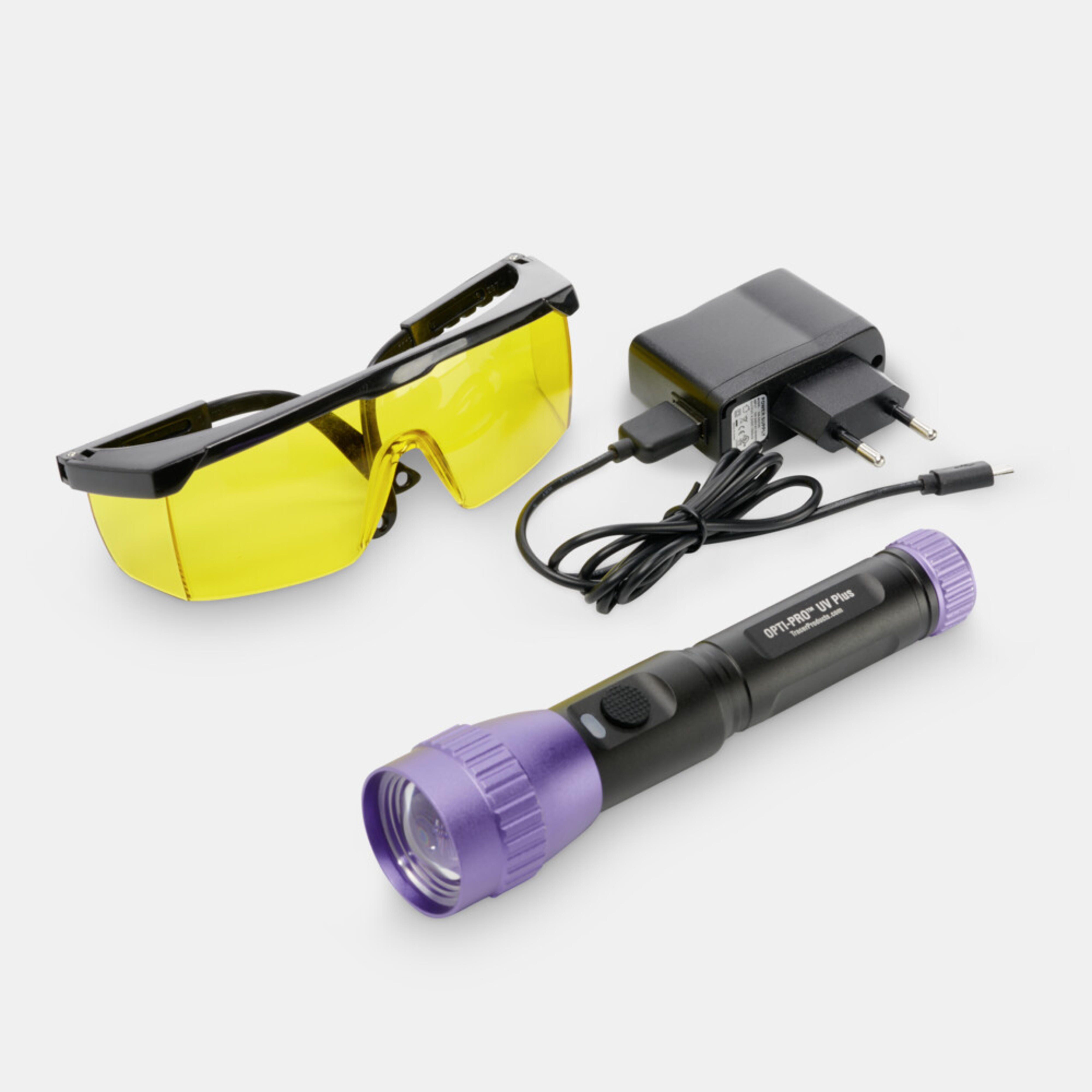

  • Powerful UV lamp for effective leak detection
  • An adjustable focus lens, high/low lighting and a strobe light provide added versatility and control
  • Can be recharged using the included smart charger
  • Fluorescence-enhancing glasses and lanyard also included
  • Leaks will glow brightly when paired with one of our TRACERLINE® dyes

  • Powerful UV lamp, with a light output comparable to high-intensity 135 W lamps
  • Works with all TRACERLINE® universal/ester and PAG A/C dyes
  • Can be recharged using the included smart charger
  • Provides 4 hours of continuous use between charges
  • Fluorescence-enhancing glasses and lanyard also included

  • Application facile avec le vaporisateur
  • Élimine les traces de colorant de détection du plomb dans le compartiment moteur/au niveau des ports d’entretien
  • Convient pour tous les additifs de détection de fuites Tracer®
  • La recharge permet de réduire les déchets

  • Bouteille recharge pour le vaporisateur - réduit les déchets
  • Application facile avec le vaporisateur
  • Élimine les traces de colorant de détection du plomb dans le compartiment moteur/au niveau des ports d’entretien
  • Convient pour tous les additifs de détection de fuites Tracer®

Clear all

Select items to compare Compare

Un additif spécial, fluorescent, est injecté dans le circuit du fluide frigorigène – soit via la station de charge de climatisation, soit manuellement. Quelques nouveaux modèles de déshydrateurs sont déjà équipés d’usine de tels additifs. Lorsque les composants de la climatisation sont éclairés avec une lampe UV et examinés en portant des lunettes de protection UV jaunes, la fuite apparaît clairement illuminée. La visibilité est garantie même lorsqu’il s’agit de moteurs couverts d’huile et à une certaine distance. Contrairement à la méthode de l’azote hydrogéné, la détection des fuites par UV convient également pour repérer de minuscules fuites. Elle est même la seule méthode permettant de trouver les fuites dues aux vibrations.
